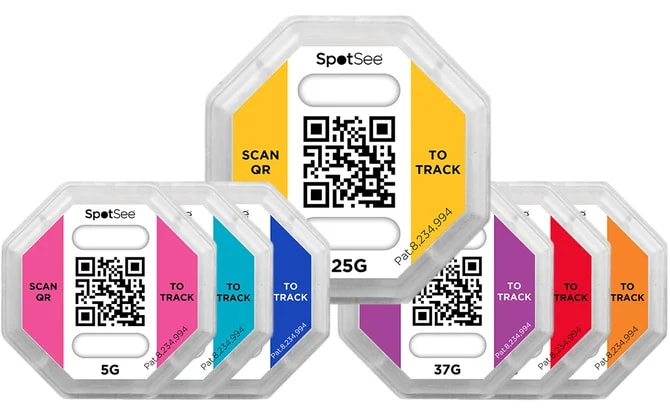

ShockWatch 2 QR
The impact indicator anyone in the supply chain can check with a phone — no app, no training — with the reading recorded in the cloud.
How it works
- 1
Apply
Stick the indicator on a flat, rigid, clearly visible surface of the package or load.
- 2
Activate
Activate it before shipping (it is then ready to measure). Before activation it does not register impacts.
- 3
Transit
If the load suffers an impact above the chosen G threshold, the window changes colour irreversibly.
- 4
Scan the QR
The recipient scans the code with the phone camera. No app needs to be installed.
- 5
Record
The scan stores the status (activated/tripped), the time, the GPS location of the scan and the serial number in SpotSee Cloud.
Note: GPS shows where and when the code was scanned, not where the impact happened.

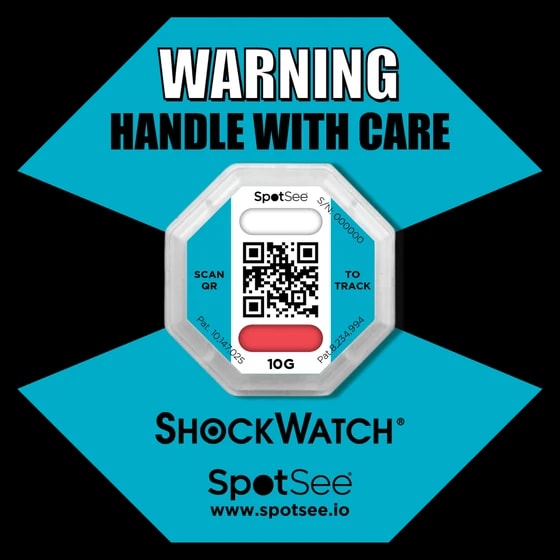

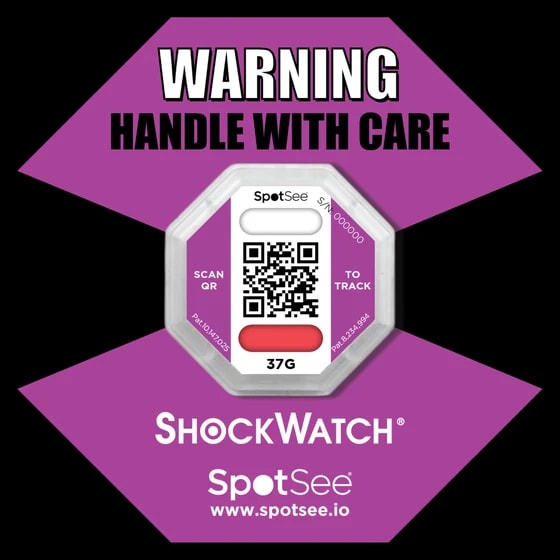

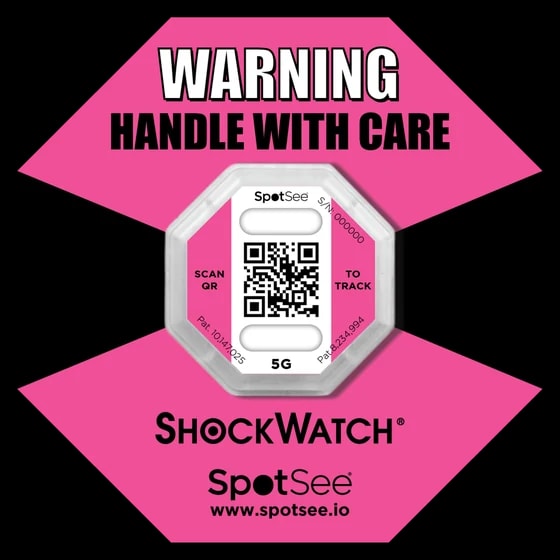

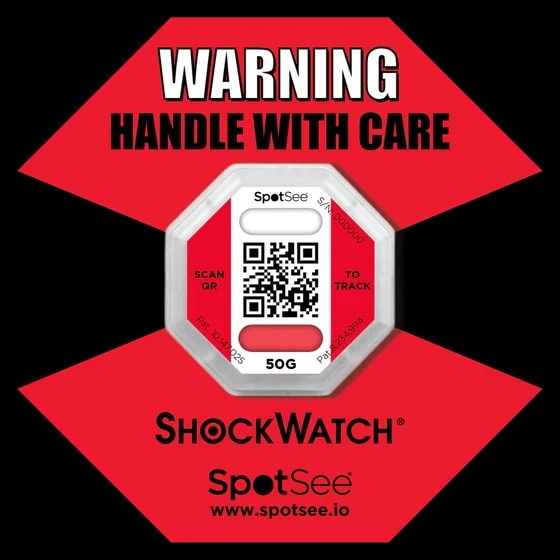

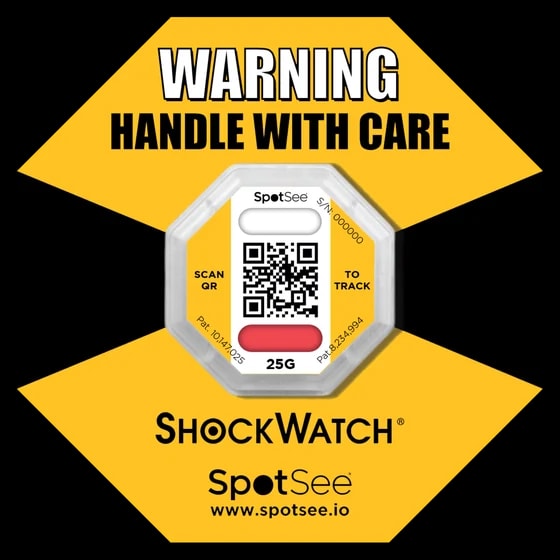

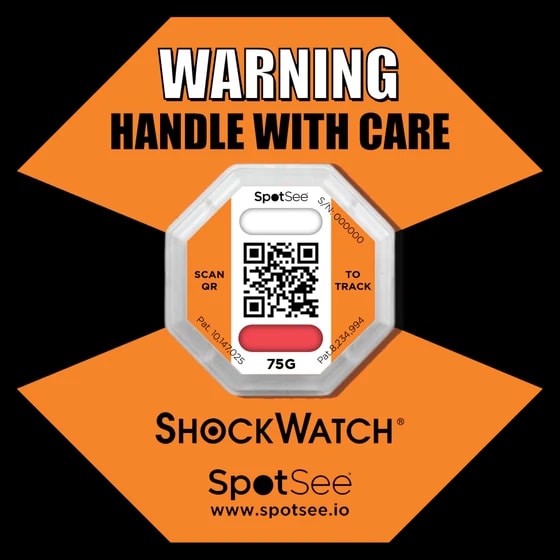

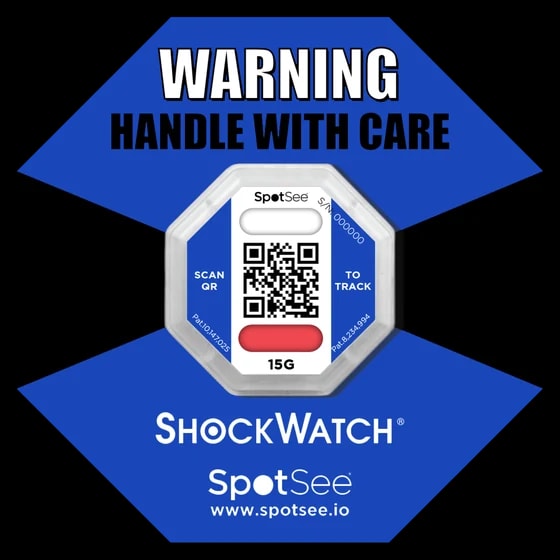

The 7 levels
The more fragile the load, the lower the G level. If in doubt, use the calculator below.
Which level should I choose?
ShockWatch 2 Calculator
Enter the load weight and package volume to get the recommended G threshold, based on the official SpotSee selection chart.
Calculated volume: 0.240 m³ (8.5 ft³)
Where to mount the indicator
- Lower third of the package/pallet, as close to the edge as possible.
- Avoid the centre of the face: the mounting point should be structurally sound.
- Place the Alert Sticker on the bill of lading to remind the receiver to check the indicator on arrival.
Use 1 indicator.
Features
QR reading
Any phone, no app.
SpotSee Cloud
Central records, 21 CFR Part 11 compatible.
Instant response
Detects 0.5–50 ms impacts, ±15 % tolerance.
Dimensions
42.93 × 42.93 × 6.35 mm; −25 to 80 °C; 2-year shelf life.
FAQ
Do I need an app to scan the QR?
No. The phone camera is enough.
Does the QR tell me where the load was dropped?
No. It records where and when it was scanned. To locate the event, use GPS recorders (e.g. ShockLog).
Can I buy a few units?
Contact us: supply is made to order, usually in packs of 100 per level.
How is it different from the classic ShockWatch 2?
Same detection principle, with a QR code and digital record of the scans.
Need help choosing?
Tell us the weight, volume and type of transport and we will recommend the right level.
Talk to us
